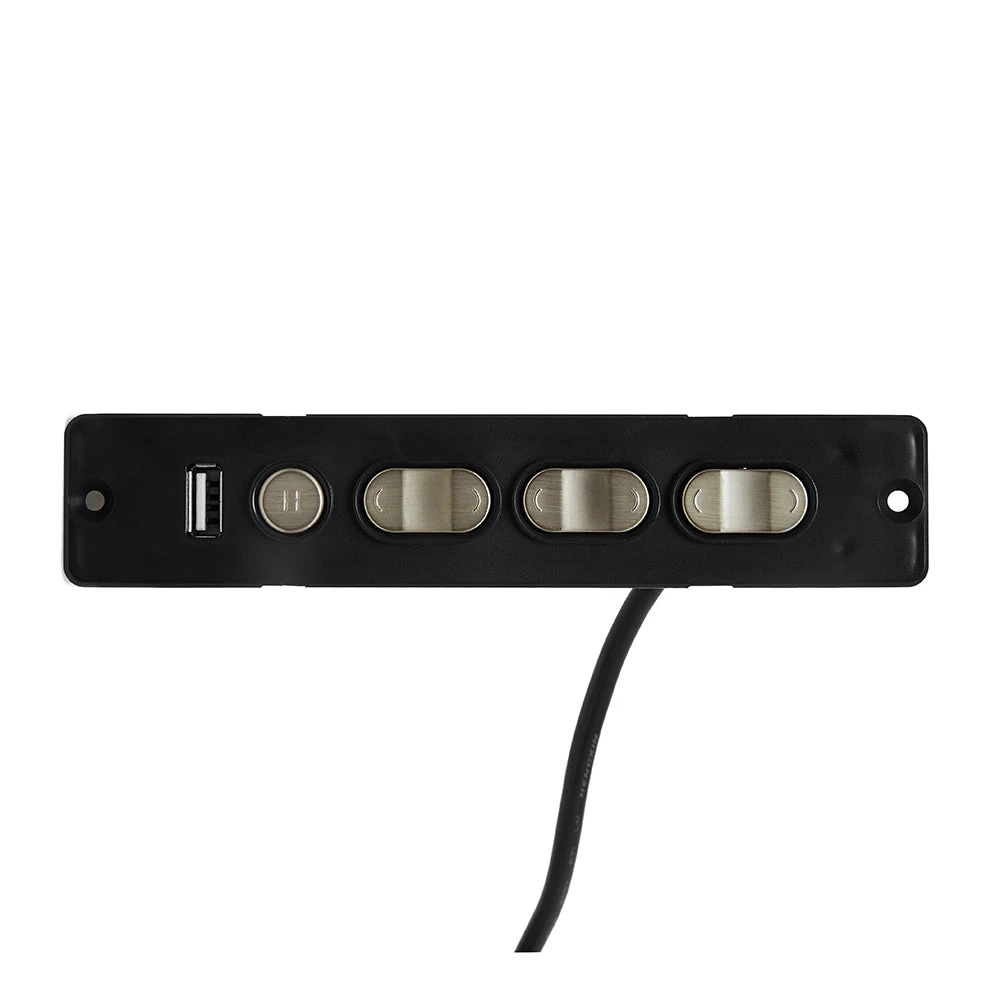

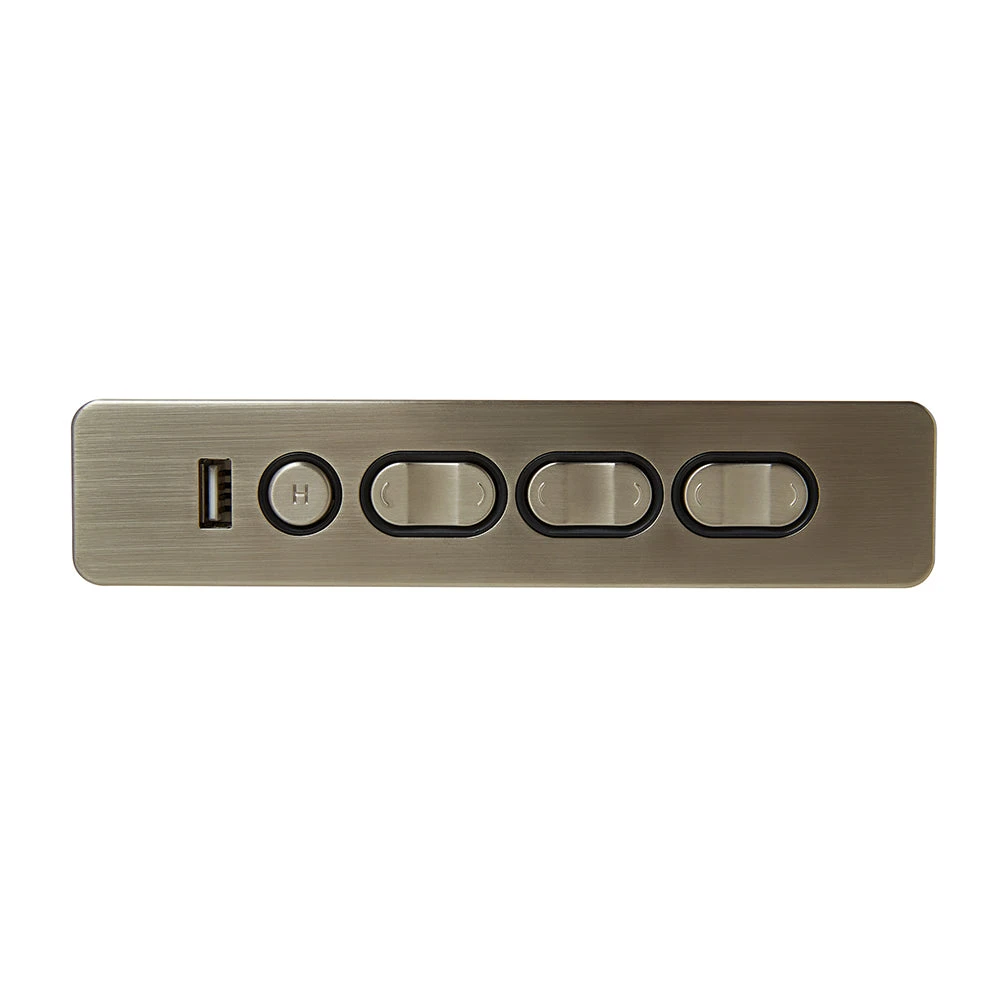

RMT R22231010186 Recliner Side Switch 7 Button With USB

• This is the genuine R22231010186 Recliner Switch, if your switch has the same model number, you can use this switch to replace yours.
• The switch has 7 buttons, it is suitable for recliners with 3 linear actuator motors
• With a USB charging port, you can use it to charge your mobile device

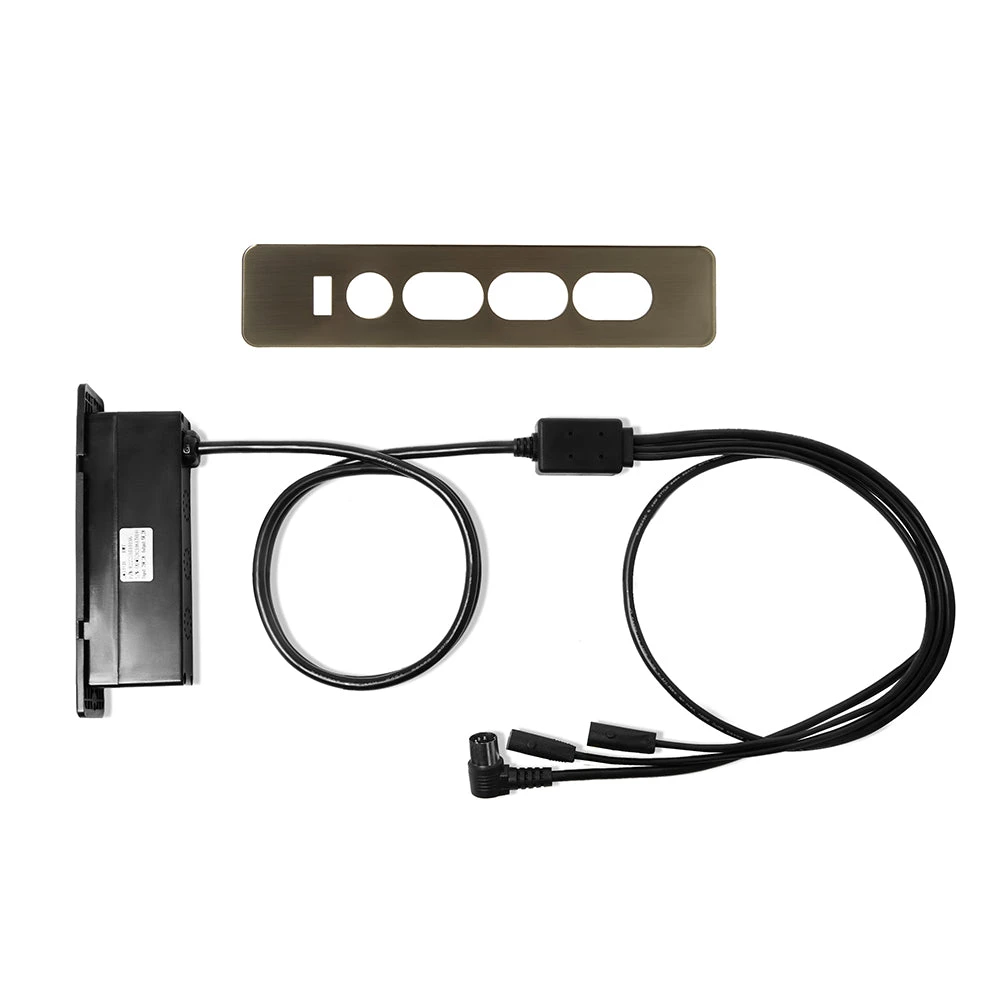

• This switch has 3 plugs: 1*right angled 5 pin male plug, and 2* 2 pin female plug.



Specification

• Model Number: R22231010186
• Brand: RMT
• Rated Voltage: 29V 2A
• USB port output: 5V 1A



Note:

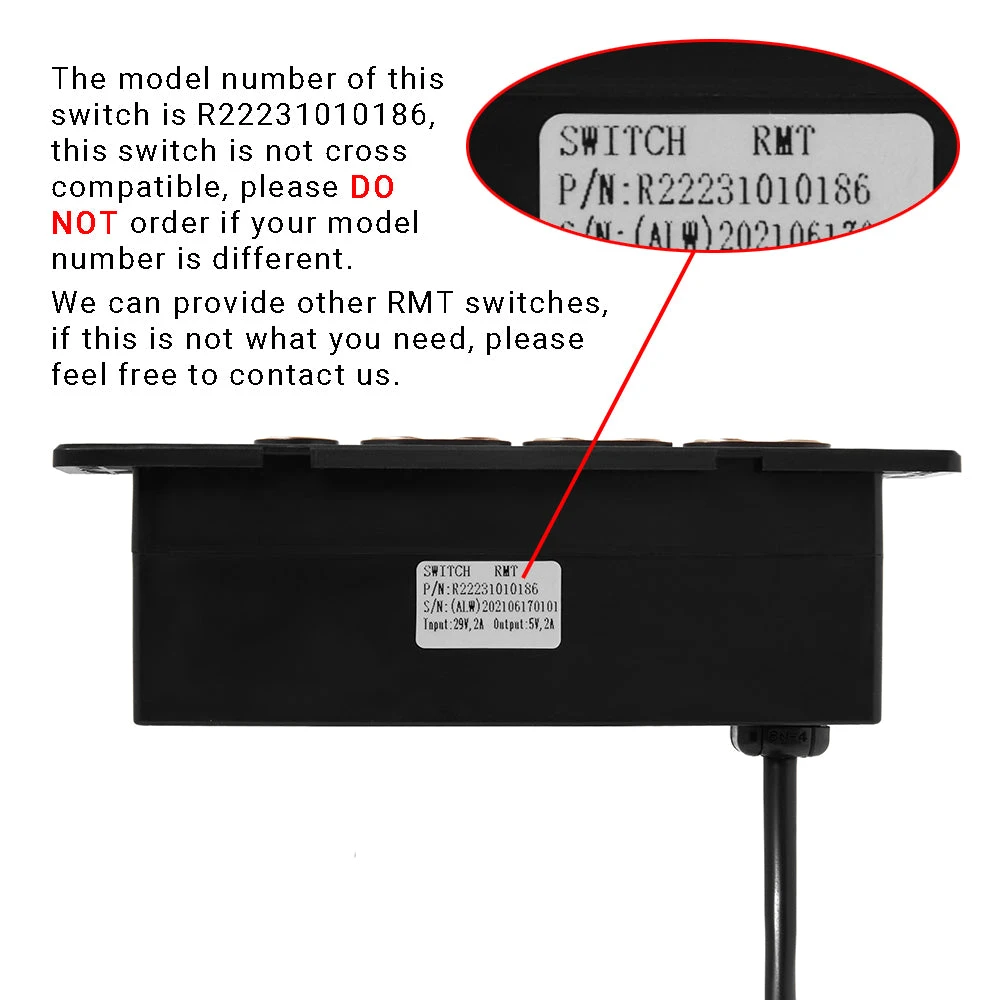

• The R22231010186is not a universal switch, please only order when your switch has the same model number.
• The plastic cover of the switch is difficult to remove once it is locked. To facilitate your installation, the cover will be separated from the switch when shipping.
• When you are installing the switch, do not install the plastic cover until everything is done.
• After installing this switch to your chair, please operate all the actuator motors to the longest and shortest position a couple of times, so that the switch can identify the stroke of the motor.
• Avoid quick operation of the buttons: When responding to the switching operation, the current is relatively large, and quick operation is more likely to cause damage to the switch.
